Program Analysis and Assessment Approach (PERT) Charts: A Complete Information

Program Analysis and Assessment Approach (PERT) charts are highly effective undertaking administration instruments used to visualise and analyze advanced tasks with unsure activity durations. Not like Gantt charts which assume deterministic activity durations, PERT incorporates probabilistic estimations, permitting for a extra practical illustration of undertaking timelines and potential dangers. This text offers a complete overview of PERT charts, masking their creation, interpretation, and sensible functions.

Understanding the Fundamentals of PERT

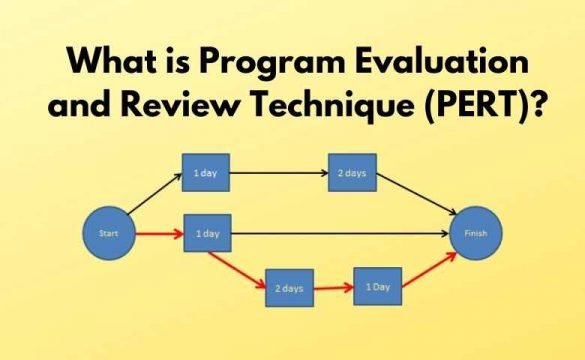

PERT charts, developed within the Fifties for the US Navy’s Polaris missile program, are community diagrams that depict undertaking actions as nodes related by arrows representing dependencies. Every exercise node comprises details about the duty’s identify, period, and potential dependencies on different duties. The important thing distinction from different undertaking administration charts lies in its dealing with of uncertainty. As an alternative of a single estimate for activity period, PERT makes use of three-point estimations:

• Optimistic Time (O): The shortest attainable time to finish the duty underneath preferrred situations.
• Most Doubtless Time (M): Essentially the most practical estimate for the duty’s period.
• Pessimistic Time (P): The longest attainable time to finish the duty underneath unfavorable situations.

These three estimates are used to calculate the anticipated period and variance for every activity, offering a extra complete understanding of the undertaking’s timeline.

Calculating Anticipated Length and Variance:

The anticipated period (te) for every activity is calculated utilizing a weighted common:

te = (O + 4M + P) / 6

This formulation provides extra weight to the almost definitely time, reflecting its greater chance.

The variance (σ²) for every activity is calculated as:

σ² = ((P - O) / 6)²

The variance represents the uncertainty related to the duty’s period. The next variance signifies larger uncertainty.

Making a PERT Chart:

Making a PERT chart entails a number of steps:

1. Outline the Mission Scope: Clearly outline the undertaking’s targets and deliverables. Break down the undertaking into smaller, manageable duties.

2. Determine Job Dependencies: Decide the sequential relationships between duties. Some duties should be accomplished earlier than others can start. This defines the undertaking’s important path.

3. Develop the Community Diagram: Characterize every activity as a node and join them with arrows indicating dependencies. This visible illustration types the spine of the PERT chart. Widespread strategies for developing the community embrace the priority diagramming methodology (PDM) and the arrow diagramming methodology (ADM).

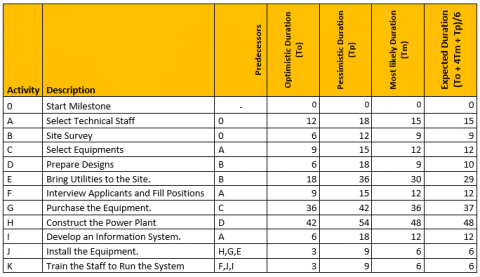

4. Estimate Job Durations: For every activity, estimate the optimistic (O), almost definitely (M), and pessimistic (P) durations. This requires knowledgeable judgment and doubtlessly historic information.

5. Calculate Anticipated Durations and Variances: Use the formulation talked about above to calculate the anticipated period (te) and variance (σ²) for every activity.

6. Decide the Vital Path: The important path is the longest path by way of the community diagram. It represents the shortest attainable undertaking completion time and identifies duties that, if delayed, will delay the whole undertaking. Duties on the important path have zero slack or float.

7. Calculate Mission Completion Time: The sum of the anticipated durations of duties on the important path represents the anticipated undertaking completion time.

8. Calculate Mission Variance: The sum of the variances of duties on the important path represents the undertaking’s general variance. This means the general uncertainty within the undertaking’s completion time.

Deciphering PERT Charts:

As soon as the PERT chart is constructed, it offers priceless insights into the undertaking:

• Mission Timeline: The chart clearly exhibits the anticipated undertaking completion time and the person activity durations.

• Vital Path Identification: It highlights the important path, permitting undertaking managers to focus assets and a focus on essentially the most essential duties.

• Danger Evaluation: The variances related to every activity and the general undertaking present a quantitative measure of the undertaking’s uncertainty. Excessive variance signifies greater danger.

• Useful resource Allocation: The chart helps in environment friendly useful resource allocation by figuring out important duties and potential bottlenecks.

• Progress Monitoring: The chart can be utilized to trace progress in opposition to the deliberate schedule and determine potential delays.

Benefits of Utilizing PERT Charts:

• Handles Uncertainty: Not like Gantt charts, PERT incorporates probabilistic estimations, offering a extra practical view of undertaking timelines.

• Identifies Vital Path: Clearly identifies essentially the most important duties and potential bottlenecks.

• Facilitates Danger Administration: Gives a quantitative measure of undertaking uncertainty, permitting for proactive danger mitigation methods.

• Improves Communication: Gives a transparent and concise visible illustration of the undertaking, facilitating communication amongst stakeholders.

• Helps Resolution Making: Provides priceless information for knowledgeable decision-making associated to useful resource allocation, scheduling, and danger administration.

Limitations of PERT Charts:

• Complexity: For giant and sophisticated tasks, creating and managing PERT charts will be time-consuming and difficult.

• Subjectivity: The three-point estimations depend on knowledgeable judgment, which may introduce subjectivity and bias.

• Assumption of Independence: The essential PERT mannequin assumes that activity durations are impartial. In actuality, dependencies may exist that aren’t explicitly captured.

• Issue in Dealing with Modifications: Updating PERT charts to mirror adjustments in undertaking scope or activity durations will be cumbersome.

Software program for Creating PERT Charts:

A number of software program instruments can be found for creating and managing PERT charts, together with Microsoft Mission, Primavera P6, and numerous on-line undertaking administration platforms. These instruments automate most of the calculations and supply further options for undertaking planning and monitoring.

Conclusion:

PERT charts are priceless instruments for managing advanced tasks with unsure activity durations. By incorporating probabilistic estimations and figuring out the important path, PERT charts present a extra practical and complete understanding of undertaking timelines and dangers. Whereas they’ve limitations, their skill to deal with uncertainty and facilitate danger administration makes them a necessary software within the undertaking supervisor’s arsenal. Understanding the ideas of PERT and using acceptable software program can considerably improve undertaking planning, execution, and success. The power to visualise dependencies, determine important paths, and quantify uncertainty makes PERT a useful asset for any undertaking aiming for environment friendly and well timed completion. By combining the quantitative evaluation supplied by PERT with qualitative danger assessments and stakeholder communication, tasks can obtain the next chance of success.
